Hot Water Systems

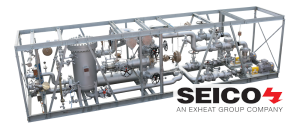

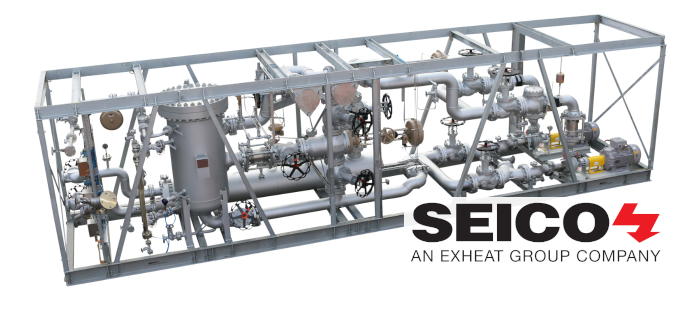

SEICO, an EXHEAT Group company, designs heat transfer water circulation systems that use pumps to convey water through a closed circuit of up to 270°C / 518°F. Heating is applied by using hot steam in a cascade or by utilizing electrical heating inserts - with heating capacities of up to approximately 20 MW. These Hot Water Systems are plug-and play-units. Depending on your requirements, the units can be equipped with heat exchangers for heating and/or cooling. SEICO's engineering department is specialized in designing customized units in accordance with customers' specifications - under careful consideration of hazardous area standards - and are harmonized with specific national and local rules.

Further customers' primary heating sources like hot-oil-ring or hot-water-ring mains are alternatively possible by using SEICO annular-gap heat exchangers.

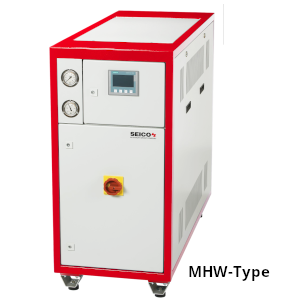

For "smaller" standardized mobile hot-water heating / cooling units, please ask for SEICO MHW-type systems (15 kW up to 60 kW heating capacity, up to 220°C / 428°F operating temperature).

Features

  • High adaptability: Heat transfer water circulation systems are available in a variety of sizes (standard: 15 kW up to 20 MW) with the same quality level due to its modular design.
  • Great ecology: Electric heating allows maximum efficiency and low CO₂ emissions.
  • Hot-Water circulation systems have an enormous heat transfer efficiency compared to hot-oil.
  • Water is easily available, non-toxic and does not burn.
  • Worldwide commissioning support and service is provided.


Product Applications

  • Agitator
  • Calendering
  • Coating equipment
  • Dryer heating
  • Extruders
  • Film production
  • Laminating
  • Reactors
  • Tank storage heating
  • Winders

Certifications

  • AD2000 HP0
  • ASME Code
  • CML (AQSIQ, SQL)
  • GOST-R, KOSUA, U-GOST
  • DIN EN ISO 9001
  • DIN EN ISO 3834
  • DIN EN 13445
  • Explosion Protection Directive 2014/34/EU, ATEX, NEPSI, CCC, IEC-EX
  • Machinery Directive 2006/42/EC
  • Pressure Equipment Directive 2014/68/EU
  • Further customized certifications can be provided to meet your requirements



Testing

  • Dye penetrant tests
  • Strength and pressure tests
  • Tightness tests
  • X-ray inspections
  • Further customized testing can be provided to meet your requirements
