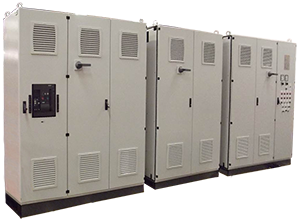

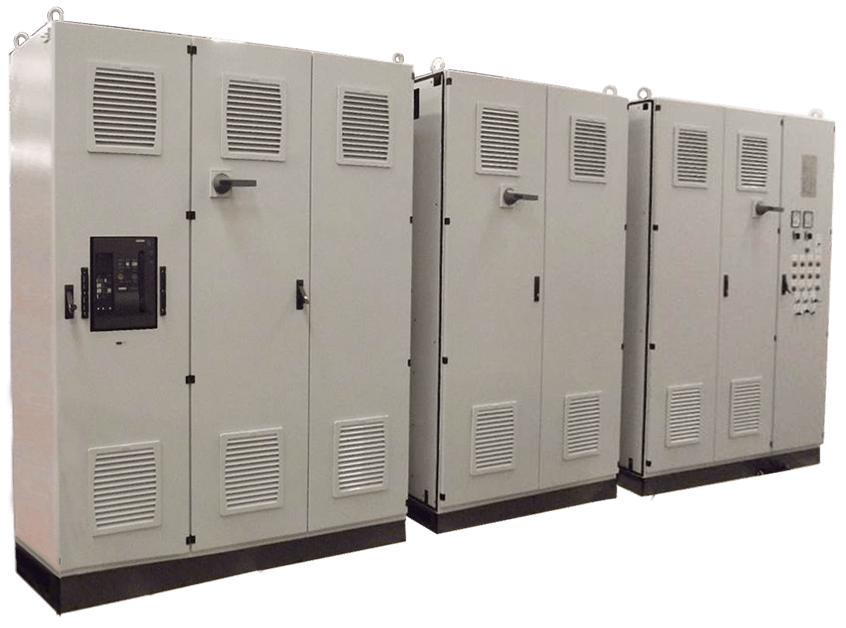

Low Voltage MCCs and Modular Systems

EXHEAT engineers MCCs and modular systems for numerous applications to suit any client requirement. The frames used are of welded construction and all busbar sections are type tested and verification provided, in accordance with IEC 61439 as required. All client specifications can be applied.

Due to its modular design, the system is able to be expanded up to 50% with minimum modification and system disruption. This enables for easy future system expansion.


  • -20 to +40°C operational temperature
  • Welded frame modular construction
  • IP ratings to IP66
  • IEC 61439, etc
  • Full condition testing
  • Single phase control 230VAC or 110VAC
  • 3 phase mains 380VAC to 690VAC
  • Customers’ personalization
  • On / off control
  • Fine process control
