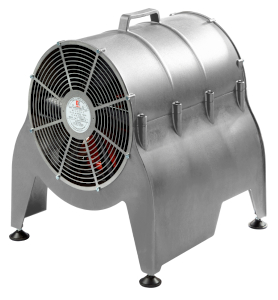

MFH-SA Safe Area Fan Heater

Product Applications
  • Container heating
  • Dairies
  • Engine bay
  • Equipment rooms
  • Greenhouses
  • Living quarters
  • Pump stations
  • Ships
  • Storage units
  • Wet rooms
  • Workshops

EXHEAT Industrial’s MFH-SA Safe Area Fan Heater uses a patented design (GB1614657.3) that combines efficiency with simple functionality to provide a portable heating solution for industrial areas. The Safe Area Fan Heater comes ready to ‘plug and play’ with the option of fitting a plug, or hard wiring to an isolator unit.

Using adjustable feet, the heater can be angled to allow for flexibility in its positioning and, with its compact design, can be easily stored or transported. Additionally, the Safe Area Fan Heater comes with a three position switch that gives the option of running the heater with or without the elements energised. There is also the option of fitting a room thermostat locally to the heater (fixed ambient) at an additional cost.

Features

  • Can be supplied on a long flying lead to get heat where you need it
  • Up to 15kW
  • The Safe Area design increases efficiency, providing a warmer flow of air for the operator at up to 5m
  • Suitable for ambient temperatures as low as -40ºC and up to +60°C

Specifications

Dimensions L475 x W470 x H530mm. Base weight 25kg
Main Materials Casing: PA66
Impeller: PA66
Elements: Finned stainless steel tubular elements
Enclosure: Stainless steel
Motor Housing: Epoxy coated aluminium
Mounting Adjustable feet at each corner allow for a stable standing on uneven surfaces. Wall mounting bracket option and anti-static castors available.
Rating Up to 15kW
Voltage Single-Phase: 110 to 120VAC, 220 to 277VAC
Three-Phase: 380 to 480VAC, 600 to 690VAC
