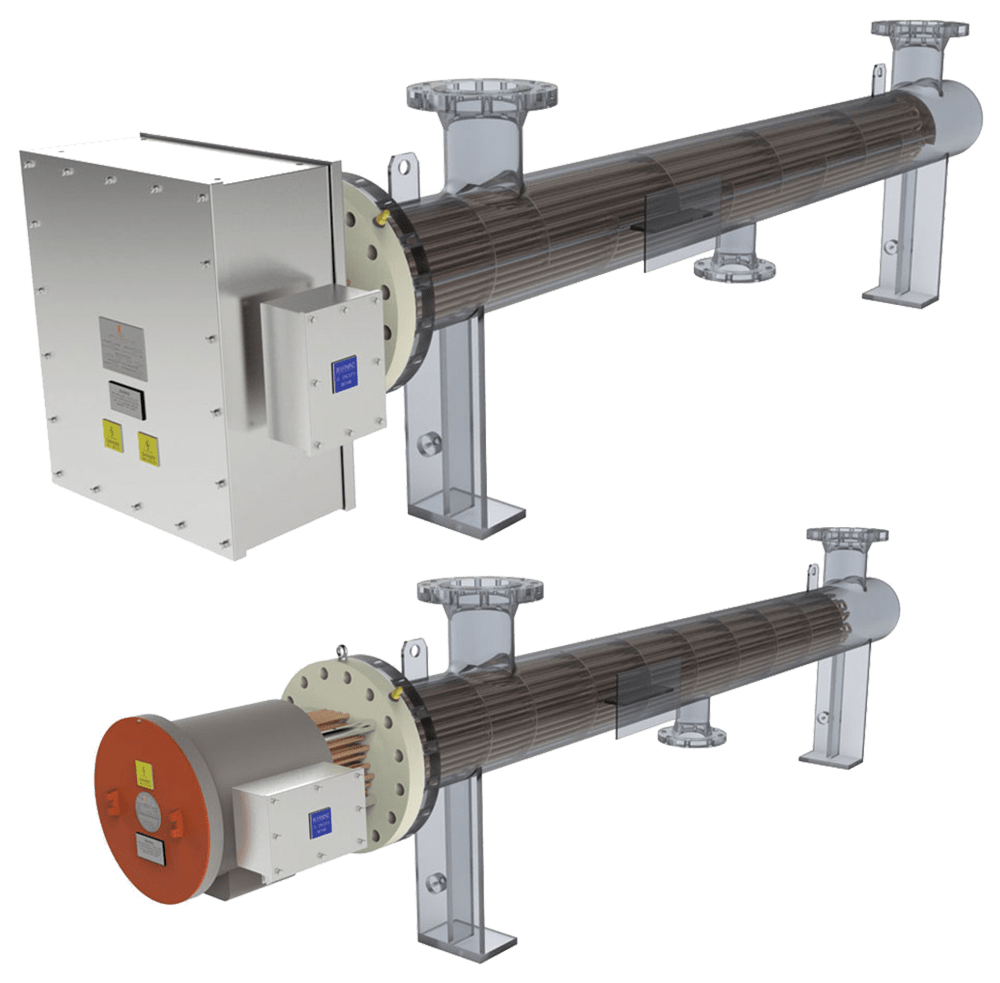

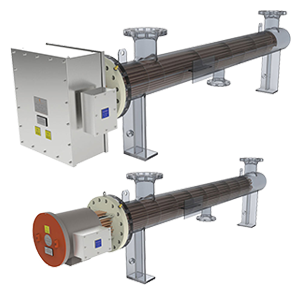

PEOH Standard Oil Line Heaters

Product Applications
  • Heat transfer oils
  • Fuel forwarding
  • Fuel separation
  • Pipelines
  • Fuel oils
  • Crude oils
  • Lubricating oils
  • Oil pre-heating

The range of standard oil heaters are engineered in advance to offer quick delivery times, ease of maintenance and reduced costs. The design uses thyristor control systems, ensuring process fluid is heated to the correct temperature. All heaters use elements that are sealed to prevent moisture ingress, and can be individually replaced on site without the need for special tools.

Features

  • Certified for Zone 1 hazardous areas or Class I, Div 1 and 2
  • Temperature classes T3 to T6
  • Available in 6" to 36" vessel sizes
  • 2 element sensors per stage as standard
  • Spare elements installed as standard
  • Designs in accordance with ASME VIII, PD5500, EN13445 or AS1210
  • Available with optional ASME U 'Code' Stamp, NORSOK compliance, NACE MR0175 and/or PED

Specification

Vessel Design Codes ASME VIII, PD5500, EN13445 or AS1210
Optional ASME U 'Code' Stamp, NORSOK Compliance, NACE MR0175 and/or PED
Vessel Materials Carbon Steel
Stainless Steel
Elements Alloy 800
Stainless Steel 321
Alloy 825
Can be customised to client's specifications
Internals Elements are supported in a cut segmental baffle assembly, and are designed and calculated in accordance with TEMA
Element to Tubesheet Elements are fixed to support plate via stainless steel compression fittings
Voltage Up to 690V (CSA up to 600V)
Rating Up to 2500kW
Temperature Capacity Up to +150°C
Pressure Capacity 40 barg
