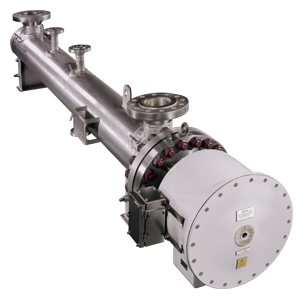

BFP Hazardous Area Process Heaters
| Product Applications | ||
|---|---|---|
|
|
|
|
|
|
|
|
|
The BFP type flameproof electric heaters comprise a large range of process flow heaters, certified for use in hazardous areas and are custom built to meet client specifications.
Features
- Certified to ATEX or IECEx standards
- Terminal box is certified weatherproof to IP65
- Temperature classifications T1 to T6
- Up to 1400kW (larger ratings achieved by a combination of enclosures)
- Elements are individually replaceable on site without the need for special tools
- Anti-condensation heaters fitted, if required
Specifications
| Certifications | ATEX / IECEx  II 2 G/DEx d IIB T1 to T6 Gb Ex tD A21 T85 to T450°C Db IP65 EN 60079-0, EN 60079-1, EN 60079-7, EN 60079-31 |
|---|---|
| Vessel Design Codes | PED Compliant Stoomwezen CODAP PD 5500 2000 Cat 1 ASME VIII Div 1/2 EN13445 AS 1210 AD Merkblätter |
| Vessel Materials | Carbon steel Duplex Monel Low temperature steel Titanium Nickel alloys Stainless steel Super austenitic |
| Elements | Manufactured from 80/20 NiCr resistance wire with high purity compacted magnesium oxide powder sheathed within corrosion / erosion resistant tube, eg: Incoloy 800/825 316/316L stainless steel Inconel 600/625 321 stainless steel Titanium Monel Element sheath available in welded or seamless tube up to 1.6mm thick |
| Internals | Elements are supported in a segmental or rod type baffle assembly to prevent flow-induced vibration and hot spots, generally complying with TEMA standards |
| Element to Tubesheet | Generally, elements are sealed into the flange by ‘Bite’ type couplings which provide a 100% seal at pressures up to 400 barg and give the opportunity to replace individual elements on site; elements can be welded to the tubesheet, in stand-off and non-stand-off configurations |
| Terminal Box | Manufactured from either iron or stainless steel |
| Voltage | Suitable for voltages up to 690V |
