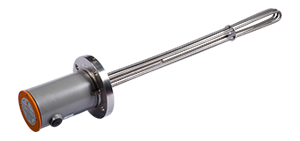

FP Flameproof Rod-Type Immersion Heaters

Product Applications
  • Accumulator System Cabinet
  • Acid Reactor System
  • Acoustic Enclosure
  • Aggressive Water
  • Air Line Heaters
  • Amine Storage Tank
  • Anodising
  • Anti Condensation Heater
  • Anti-Freeze
  • Aresol Can Tester
  • Battery Cabinet Heater
  • Bilge Tanks
  • Biodiesel
  • Biogas Purification System
  • Boiler Equipment
  • Buffer Vessel (Water)
  • Bywash System
  • Cabinet
  • Calorifier
  • Calorifier Packages
  • Calorifier Skid
  • Catalyst Oxidation
  • Caustic
  • Caustic Solution
  • Caustic Tank
  • Chemical Bath
  • Chemical Cleaning Tank
  • Chemical Injection Cabinet
  • Chemical Injection Systems
  • Chemical Mixing Tank
  • Chemical Plant Warehouses
  • Chemical Plants
  • Chemical Tanks
  • Cleaning and Rinsing Equipment
  • Cleaning and Rinsing Tanks
  • Cleaning Solution
  • Cleaning Solution / Caustic
  • Cleaning System
  • Cleaning Water Tank
  • Closed Loop Systems for Bitumen
  • Cold Start Up
  • Compressor - CW Heater
  • Compressor - Lube Oil
  • Compressor - Water/Glycol
  • Compressor Enclosure
  • Compressor Frame Enclosure
  • Cooking Oil Transportation
  • Coolant
  • Cooling Tower
  • Crank Case Heater
  • Crankcase
  • Crankcase Heater
  • Crude Oil
  • Crude Oil Maintenance Line
  • De-greasing Tank
  • De-Ionised Water
  • De-Ionized Water
  • De-Min Hot Water Tank Package
  • Dehydration Gas Plant
  • Deluge Skid
  • Demi Water
  • Dies & Platens
  • Diesel Generator Enclosure
  • Diesel Heater
  • Diesel Oil Tank
  • Diesel Tank Heater
  • Drier System
  • Drum Heating
  • Drying Ovens
  • Emergency Showers
  • Enclosure
  • Ethylene Tank
  • Eyewash Stations
  • Filtration System
  • Finishing
  • Fire Equipment Cabinet
  • Fire Equipment Skids
  • Fire Extinguishing Equipment
  • Flushing Rig for Oil Reservoir
  • Food Processing Equipment
  • FPSO
  • Frost Protection
  • Fuel Oil
  • Fuel Oil Heating
  • Fuel Oil Reservoir
  • Fuel Oil Tank
  • Fuel Oil Tanks
  • Gas Bottles
  • Gas Installations
  • Gas Regeneration
  • Gear Box Oil
  • Gear Oil
  • Gear Oil Tank
  • Gearbox Oil
  • GLNG Natural Gas Train Gas Supply
  • Glycol
  • GRP Enclosure
  • Hazardous Area Showers
  • HCL solution
  • Heat Transfer Fluid
  • Heat Transfer Oil Tank/System
  • Heat Transfer Oils
  • Heated Showers
  • Heating Cabinet
  • Heating Medium
  • High Pressure Wash System
  • High Pressure Washers
  • Hot Swills
  • Hot Water Calorifier
  • Hot Water Heating System
  • Hot Water Sanitiser
  • Hot Water Storage
  • Hot Water Storage Tanks
  • Hot Water Tank
  • Hot Water Wash System
  • Hydraulic Oil - Tank/Reservoir
  • Hydraulic Oil Drums
  • Hydraulic Oil Package
  • Hydraulic Oil Tank
  • Hydraulic Power Pack
  • Increase Flow of Viscous Liquids
  • Indirect Heating of Liquids
  • Industrial washing and rinsing processes
  • Industrial Washing Machine
  • Industrial Water Heating
  • Inline Diesel
  • Kinetic Hydrate Inhibitor
  • Laboratories
  • Laboratory Chemical
  • LNG Oil Separator
  • Lube Oil
  • Lube Oil Centrifuge Skid
  • Lube Oil Console
  • Lube Oil Coolers for Gas Turbines
  • Lube Oil for Flushing System
  • Lube Oil for Refrigeration Package
  • Lube Oil Heater
  • Lube Oil Reservoir
  • Lube Oil System
  • Lube Oil Tanks - Gas Compressor Trains
  • Lubricant Oil
  • Machine Enclosure
  • Machinery and Plant Construction
  • Melting of Solids (Paraffin)
  • Methane Digester
  • Mineral Oil
  • Molasses (Syrup)
  • Motor Cases/Enclosures
  • Motor Enclosure
  • Motor/Generator
  • Moulds
  • Nitric Acid Solution
  • Offshore Cabinet
  • Offshore Heating Vessel
  • Offshore Installation
  • Offshore Platform
  • Offshore Water Tank
  • Oil / Water Mix
  • Oil / Water Mixture
  • Oil & Lubricant Store
  • Oil & Water
  • Oil Additive Injection Tank/System
  • Oil Gearbox heater
  • Oil Line Heater
  • Oil Purifier System
  • Oil Recycling & Filtration System
  • Oil Refineries
  • Oil Reservoir
  • Oil Separator
  • Oil Separator Heater
  • Oil Storage Tanks
  • Oil Sump
  • Oil Sump Heaters
  • Oil Sump Heating
  • Oil System Unit
  • Oil Tank
  • Oil Tanker
  • Oil Tanks
  • Oil Top-Up Tank
  • Oil/Water Mix
  • Outdoor Telecommunications Cabinet
  • Paint Machinery
  • Paraffin
  • Pasteurisation
  • Petrochemical Plant
  • PFD Liquid
  • Phosphate Water
  • Plant
  • Portable Showers
  • Potable Water
  • Pour Point Depressant
  • Power Engineering
  • Pre-heating Hydraulic Oil
  • Pre-Heating Oil and Water
  • Pre-heating Water for Paint Sys
  • Pressure Washers
  • Process and Boiler Equipment
  • Processing Equipment
  • Propane Refirgeration Package
  • Pulp Heating System
  • Pump Enclosure Safety Stat
  • Pumps
  • Purified Water / Pharmaceutical
  • Purified Water Circulating System
  • Purified Water System
  • Quench Tank
  • Re-circulating Oil System
  • Reactor System in Zinc Silicate Production
  • Refinery - Lube Oil
  • Refrigeration
  • Reservoir Heater
  • Reverese Osmosis Water
  • Reverse Osmosis
  • Reverse Osmosis System
  • Safety Shower
  • Safety Showers
  • Salt Water Tank
  • Sanitary Discharge System
  • Sea Water
  • Sea Water for Treatment
  • Sewage Plants
  • Shower Unit
  • Silo Base Enclosure warming
  • Silo-Skirt Heater
  • Skid
  • Skid Enclosure
  • Slurry Heater
  • Solvent Recovery Plant
  • Start Up for Lube Oil - Compressors
  • Steam Turbine Lubrication Tank
  • Sterilizing
  • Sterilizing Sink
  • Substation
  • Sugar Refinieries
  • Swimming pool
  • Tank Heating
  • Tank Showers
  • Temperature Maintenance of Storage Tanks
  • Test Rig
  • Thermic Oil for Steel Rollers
  • Transformer Enclosures
  • Transformer Lube Oil System
  • Transmitter Enclosures
  • Under floor heateing schemes
  • Underground Hydraulic Power Unit
  • Urethane Remover
  • Vacuum Pump Lube Oil
  • Vat Heating
  • Vegetable Oil
  • Ventilation and Refrigeration
  • Wash Gun Water Tank
  • Wash Rooms
  • Wash Stations
  • Washdown/Sanitizing System
  • Washer System
  • Washing Equipment
  • Washing Machines
  • Waste Water Treatment
  • Water
  • Water Boiler
  • Water Buffer Tank
  • Water Circulating
  • Water For Injections
  • Water Heater
  • Water Heater on Vacuum System
  • Water in Distillery
  • Water Pump House
  • Water Recirculation for CIP System
  • Water Storage
  • Water Storage Room
  • Water System
  • Water Tank
  • Water Tank - Pump Package
  • Water Treatment
  • Water Treatment System Container
  • Water Vapouriser
  • Water Vat
  • Water Wash Cart
  • Water/Amine Solution
  • Water/Chemical Frost Protection
  • Water/Cleaning Solution Tank
  • Water/Glycol
  • Water/Glycol for Leachate Treatment
  • Water/Glycol Re-circulation
  • Water/Glycol Reservoir
  • Water/Oil Separator Unit
  • Water/Phosphate Solution
  • Water/Soap
  • Water/Steam
  • Wax Inhibitor
  • Wort/Brewery
  • Worts/Caustic Solution

The FP range of flameproof rod-type immersion heaters is a highly adaptable solution that can be customised to suit the process requirements of our clients, and are suitable for heating all types of process mediums which are non-corrosive to the materials of construction, and carry multiple approvals for global supply.

The FP rod-type immersion heater range is certified for use in hazardous areas where the atmosphere is classified as a Zone 1 or 2 (IIA, IIB, IIC) gas group, or a Zone 21 or 22 (IIIA, IIIB, IIIC) dust group.

Features

  • Certified to ATEX and IECEx standards
  • Mild steel or 316 stainless steel terminal enclosure with weatherproof protection to IP66 or Enclosure Type / NEMA 4 or 4X
  • Choice of built in process temperature sensors
  • Suitable for ambient temperatures from -60°C to +60°C (subject to cert parameters)
  • Mounting of the heater can be by a threaded NPT or BSP boss or an industry standard flange
  • Designed for horizontal installation (vertical mounting version available on request)
  • Can be supplied with the terminal box mounted away from the fixing boss / flange

Specification

Certification ATEX / IECEx    II 2 G/D Ex d IIC T1 to T6 Gb Zone 1 and 2
ATEX / IECEx Ex tb IIIC T450°C to T85°C Db Zone 21 and 22 (IP66)
CSA (CEC/NEC) Class I, Div 1, Groups A, B, C, D; T1 to T6, Enclosure Type / NEMA 4 or 4X
CSA (CEC) Ex d IIC; T1 to T6 Gb, IP66 (CAN)
CSA (NEC) Class I, Zone 1, AEx d IIC; T1 to T6 Gb, IP66 (USA)
CU TR (EAC), KGS, CNEx, CCOE (CCEs), Inmetro
Enclosure Mild steel or 316 stainless steel, external and internal earths, screwed terminal cover, finished in epoxy paint (if required)
Elements A choice of rod-type elements comprising of 80/20 nickel chrome resistance wire, compacted in high purity magnesium oxide insulating powder and encased in either Incoloy or stainless steel sheath, secured by compression fittings, brazing or welding, depending upon the process application
Controls Heater over-temperature protection is fitted as standard (optional process temperature sensing devices can be incorporated in the form of thermostats, RTD’s or thermocouples)
Mounting Any threaded NPT or BSP boss, or flange in any material, can be specified within the limits of the design parameters; heater terminal box can be either ‘direct-on’ or ‘stand-off’, depending on process temperature
Rating To suit process requirements within the design and certification parameters
Voltage Any electrical supply up to 690V (600V CSA)
