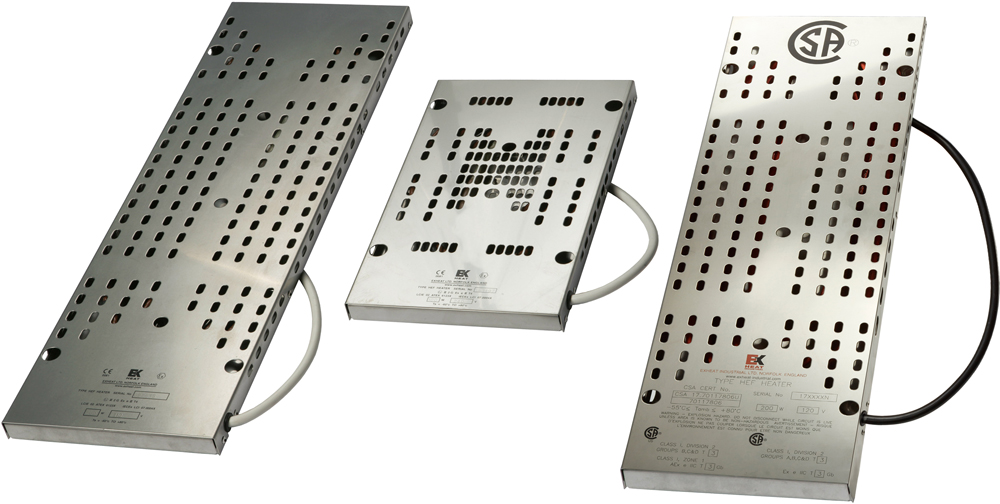

HEF Hazardous Area Enclosure/Cabinet Heaters

Product Applications
  • Accumulator System Cabinet
  • Acoustic Enclosure
  • Air Heating for Instrumentation
  • Anti Condensation Heater
  • Anti-Freeze
  • Battery Cabinet Heater
  • Cabinet
  • Chemical Injection Cabinet
  • Compressor Enclosure
  • Compressor Frame Enclosure
  • Condensation Prevention
  • Control / Monitoring Panels
  • Control Housing
  • Diesel Generator Enclosure
  • Electrical Panel
  • Enclosure
  • Fire Equipment Cabinet
  • Frost Protection
  • Gas Seal Panel
  • GRP Enclosure
  • Heating Cabinet
  • Instrumentation Cabinet
  • Instrumentation for Compressor Package
  • Junction Boxes
  • Machine Enclosure
  • Manifolds
  • Motor Cases/Enclosures
  • Motor Enclosure
  • Motor/Generator
  • Offshore Cabinet
  • Offshore Panel Heater
  • Outdoor Telecommunications Cabinet
  • Panel for Compressors
  • Panel Heaters
  • Power Distribution Panels
  • Pump Enclosure Safety Stat
  • Silo Base Enclosure warming
  • Skid Enclosure
  • Switchgear Panel/Cubicles
  • Temperature Fluctuations
  • Transformer Enclosures
  • Transmitter Enclosures
  • Valve Blocks
  • Wardrobe

The HEF is self-regulating, automatically adjusting its output to match ambient temperatures. Coupled with its compact design, this makes the HEF ideal for anti-condensation, frost protection and temperature control for all instrumentation and switch gear applications. The HEF range is certified for use in hazardous areas where the atmosphere is classified as a Zone 1 or 2 (IIC) gas group.

Features

  • Certified and declared in accordance with ATEX directive 2014/34/EU
  • Certified to CSA (Divisions and Zones) standards for North American markets
  • Compact, low profile, 316 stainless steel case, requires minimal space
  • Self-regulating - can be used without a thermostat
  • Suitable for ambient temperatures from -60°C (-55°C for CSA certified models only) to +80°C
  • Mounting of the heater can be in any orientation
  • Design allows for closer installation proximity to internal components and cables (minimum distance 100mm away)

Specification

Certification ATEX / IECEx
  II 2 G Ex eb IIC T4...T3 Gb

CSA (CAN & USA)
CAN: Class I, Div 2, Groups A, B, C and D, T3 or T4
CAN: Ex e IIC T3 or T4 Gb
USA: Class I, Div 2, Groups B, C and D, T3 or T4
USA: Class I, Zone 1, AEx e IIC T3 or T4 Gb

CU TR (EAC)
1Ex e II T4 Gb

KGS
Ex e IIC T4
Casing 316 perforated stainless steel
Element Self-regulating
Controls The HEF is self-regulating, automatically reducing its output as the ambient temperature rises. If overall enclosure temperature control is required, it is recommended that the HEF heater be used in conjunction with the AFT, HFT or FXT flameproof air sensing thermostats
Mounting The heater may be mounted in any orientation, using appropriate securing bolts through the mounting feet or DIN rail holes
Rating The HEF range is available in a nominal 30W, 50W, 100W, 200W and 500W outputs
Voltage Models available for 110V to 120V and 230V to 240V 1 phase supplies (max 254V subject to design parameters)
