RFA-C Core Flameproof Immersion Heaters

Product Applications
  • Acid Reactor System
  • Aggressive Water
  • Air Line Heaters
  • Amine Storage Tank
  • Anodising
  • Aresol Can Tester
  • Bilge Tanks
  • Biodiesel
  • Biogas Purification System
  • Boiler Equipment
  • Buffer Vessel (Water)
  • Bywash System
  • Calorifier
  • Calorifier Packages
  • Calorifier Skid
  • Catalyst Oxidation
  • Caustic
  • Caustic Solution
  • Caustic Tank
  • Chemical Bath
  • Chemical Cleaning Tank
  • Chemical Injection Systems
  • Chemical Mixing Tank
  • Chemical Plant Warehouses
  • Chemical Plants
  • Chemical Tanks
  • Cleaning and Rinsing Equipment
  • Cleaning and Rinsing Tanks
  • Cleaning Solution
  • Cleaning Solution / Caustic
  • Cleaning System
  • Cleaning Water Tank
  • Closed Loop Systems for Bitumen
  • Cold Start Up
  • Compressor - CW Heater
  • Compressor - Lube Oil
  • Compressor - Water/Glycol
  • Cooking Oil Transportation
  • Coolant
  • Cooling Tower
  • Crank Case Heater
  • Crankcase
  • Crankcase Heater
  • Crude Oil
  • Crude Oil Maintenance Line
  • De-greasing Tank
  • De-Ionised Water
  • De-Ionized Water
  • De-Min Hot Water Tank Package
  • Dehydration Gas Plant
  • Deluge Skid
  • Demi Water
  • Dies & Platens
  • Diesel Heater
  • Diesel Oil Tank
  • Diesel Tank Heater
  • Drier System
  • Drum Heating
  • Drying Ovens
  • Emergency Showers
  • Ethylene Tank
  • Eyewash Stations
  • Filtration System
  • Finishing
  • Fire Equipment Skids
  • Fire Extinguishing Equipment
  • Flushing Rig for Oil Reservoir
  • Food Processing Equipment
  • FPSO
  • Fuel Oil
  • Fuel Oil Heating
  • Fuel Oil Reservoir
  • Fuel Oil Tank
  • Fuel Oil Tanks
  • Gas Bottles
  • Gas Installations
  • Gas Regeneration
  • Gear Box Oil
  • Gear Oil
  • Gear Oil Tank
  • Gearbox Oil
  • GLNG Natural Gas Train Gas Supply
  • Glycol
  • Hazardous Area Showers
  • HCL solution
  • Heat Transfer Fluid
  • Heat Transfer Oil Tank/System
  • Heat Transfer Oils
  • Heated Showers
  • Heating Medium
  • High Pressure Wash System
  • High Pressure Washers
  • Hot Swills
  • Hot Water Calorifier
  • Hot Water Heating System
  • Hot Water Sanitiser
  • Hot Water Storage
  • Hot Water Storage Tanks
  • Hot Water Tank
  • Hot Water Wash System
  • Hydraulic Oil - Tank/Reservoir
  • Hydraulic Oil Drums
  • Hydraulic Oil Package
  • Hydraulic Oil Tank
  • Hydraulic Power Pack
  • Increase Flow of Viscous Liquids
  • Indirect Heating of Liquids
  • Industrial washing and rinsing processes
  • Industrial Washing Machine
  • Industrial Water Heating
  • Inline Diesel
  • Kinetic Hydrate Inhibitor
  • Laboratories
  • Laboratory Chemical
  • LNG Oil Separator
  • Lube Oil
  • Lube Oil Centrifuge Skid
  • Lube Oil Console
  • Lube Oil Coolers for Gas Turbines
  • Lube Oil for Flushing System
  • Lube Oil for Refrigeration Package
  • Lube Oil Heater
  • Lube Oil Reservoir
  • Lube Oil System
  • Lube Oil Tanks - Gas Compressor Trains
  • Lubricant Oil
  • Machinery and Plant Construction
  • Melting of Solids (Paraffin)
  • Methane Digester
  • Mineral Oil
  • Molasses (Syrup)
  • Motor/Generator
  • Moulds
  • Nitric Acid Solution
  • Offshore Heating Vessel
  • Offshore Installation
  • Offshore Platform
  • Offshore Water Tank
  • Oil / Water Mix
  • Oil / Water Mixture
  • Oil & Lubricant Store
  • Oil & Water
  • Oil Additive Injection Tank/System
  • Oil Gearbox heater
  • Oil Line Heater
  • Oil Purifier System
  • Oil Recycling & Filtration System
  • Oil Refineries
  • Oil Reservoir
  • Oil Separator
  • Oil Separator Heater
  • Oil Storage Tanks
  • Oil Sump
  • Oil Sump Heaters
  • Oil Sump Heating
  • Oil System Unit
  • Oil Tank
  • Oil Tanker
  • Oil Tanks
  • Oil Top-Up Tank
  • Oil/Water Mix
  • Paint Machinery
  • Paraffin
  • Pasteurisation
  • Petrochemical Plant
  • PFD Liquid
  • Phosphate Water
  • Plant
  • Portable Showers
  • Potable Water
  • Pour Point Depressant
  • Power Engineering
  • Pre-heating Hydraulic Oil
  • Pre-Heating Oil and Water
  • Pre-heating Water for Paint Sys
  • Pressure Washers
  • Process and Boiler Equipment
  • Processing Equipment
  • Propane Refirgeration Package
  • Pulp Heating System
  • Pumps
  • Purified Water / Pharmaceutical
  • Purified Water Circulating System
  • Purified Water System
  • Quench Tank
  • Re-circulating Oil System
  • Reactor System in Zinc Silicate Production
  • Refinery - Lube Oil
  • Refrigeration
  • Reservoir Heater
  • Reverese Osmosis Water
  • Reverse Osmosis
  • Reverse Osmosis System
  • Safety Shower
  • Safety Showers
  • Salt Water Tank
  • Sanitary Discharge System
  • Sea Water
  • Sea Water for Treatment
  • Sewage Plants
  • Shower Unit
  • Silo-Skirt Heater
  • Skid
  • Slurry Heater
  • Solvent Recovery Plant
  • Start Up for Lube Oil - Compressors
  • Steam Turbine Lubrication Tank
  • Sterilizing
  • Sterilizing Sink
  • Substation
  • Sugar Refinieries
  • Swimming pool
  • Tank Heating
  • Tank Showers
  • Temperature Maintenance of Storage Tanks
  • Test Rig
  • Thermic Oil for Steel Rollers
  • Transformer Lube Oil System
  • Under floor heateing schemes
  • Underground Hydraulic Power Unit
  • Urethane Remover
  • Vacuum Pump Lube Oil
  • Vat Heating
  • Vegetable Oil
  • Ventilation and Refrigeration
  • Wash Gun Water Tank
  • Wash Rooms
  • Wash Stations
  • Washdown/Sanitizing System
  • Washer System
  • Washing Equipment
  • Washing Machines
  • Waste Water Treatment
  • Water
  • Water Boiler
  • Water Buffer Tank
  • Water Circulating
  • Water For Injections
  • Water Heater
  • Water Heater on Vacuum System
  • Water in Distillery
  • Water Pump House
  • Water Recirculation for CIP System
  • Water Storage
  • Water Storage Room
  • Water System
  • Water Tank
  • Water Tank - Pump Package
  • Water Treatment
  • Water Treatment System Container
  • Water Vapouriser
  • Water Vat
  • Water Wash Cart
  • Water/Amine Solution
  • Water/Chemical Frost Protection
  • Water/Cleaning Solution Tank
  • Water/Glycol
  • Water/Glycol for Leachate Treatment
  • Water/Glycol Re-circulation
  • Water/Glycol Reservoir
  • Water/Oil Separator Unit
  • Water/Phosphate Solution
  • Water/Soap
  • Water/Steam
  • Wax Inhibitor
  • Wort/Brewery
  • Worts/Caustic Solution

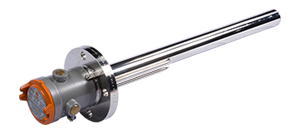

The RFA-C range of flameproof core removable cartridge heaters offers a hazardous area heating solution for oil and similar applications where low heat density is required. The element can be withdrawn for inspection without system drain down. The standard heater consists of a single element core fitted into a mounting flange. A robust flameproof terminal enclosure protects the electrical connections. The watts density of the element core fitted depends upon the media to be heated and the kilowatt rating required.

Features

  • Certified to ATEX standards
  • Lightweight cast aluminium alloy terminal enclosure with weatherproof protection to IP66 and IP67
  • Choice of built in process temperature sensors
  • Suitable for ambient temperatures from -40°C to +40°C
  • Mounting of the heater can be by threaded boss or an industry standard flange
  • Designed for horizontal installation only, vertical mounting version available on request
  • Can be supplied with the terminal box mounted away from the fixing boss/flange for high process temperatures

Specifications

Certification ATEX    II 2 G
Ex d IIC T3 to T6 Gb Zone 1 and 2
CU TR (EAC)
Enclosure Cast aluminium alloy with a maximum of two cable entries, external and internal earths, screwed terminal cover, finished in epoxy paint
Elements Removable core, comprising high quality 80/20 nickel chrome resistance wire, contained within ceramic formers
Element A choice of carbon steel, or 316L stainless steel secured by either brazing or welding depending upon the process application
Controls Heater over-temperature protection is fitted as standard
Mounting Any threaded boss or flange in any material can be specified within the limits of the design parameters. Heaters can be either ‘direct-on’ or ‘stand-off’
Rating Maximum loading 8kW
Voltage Any electrical supply up to 690V
